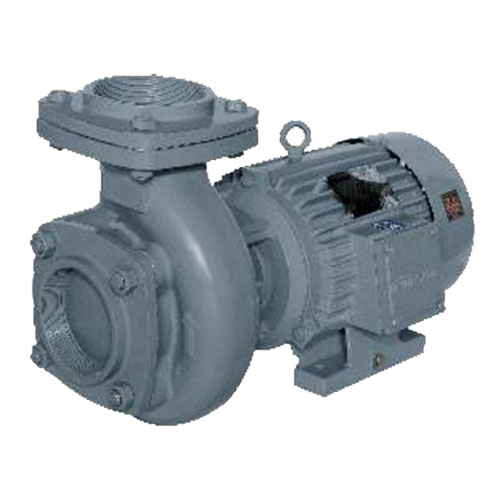

Industrial Monoblock Pump (IMB Series)
- Head Range : Upto 76 Meters
- Discharge Range : Upto 39 LPS
- Power Ratings : 3 to 30 HP
- Voltage Range : 350 to 440 Volts
- Phase : Three Phase
- Insulation : F Class
- Protection : IP 55
- RPM : 2900

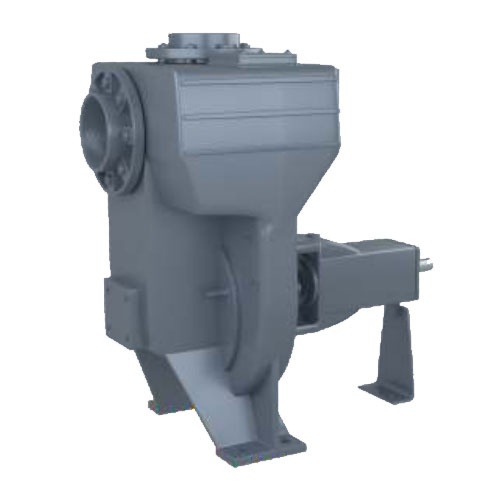

Self Priming Mud Pumps (IMH-IMS Series)
- Motor HP (Kw): 1.00 (0.75) to 25.00 (18.70)
- Pump Size (Mm): 40 x 40 to 150 x 150
- Speed (RPМ) : 1440 & 2800
- Head (Meters) : Upto 44
- Discharge (LPS): Upto 71
- Solid Handling Size (Mm): Upto 40
- Types: Bare Shaft Pumps (Gland & Seal Type)
Motor Coupled Pump Sets (Gland & SealType)
Engine Coupled Pump Sets (Gland & Seal Type)
Monoblock Pump Sets (Gland & Seal Type)

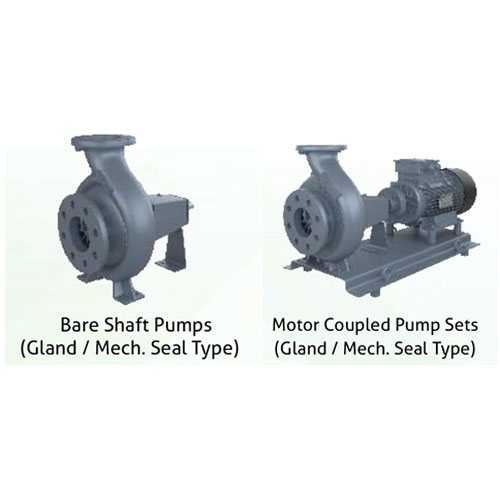

Industrial End Suction Pump (Back Pullout Design)
- Types: Bare Shaft Pumps (Gland / Mech. Seal Type)
Motor Coupled Pump Sets (Gland / Mech. Seal Type) - Motor HP (Kw): 0.34 (0.25) to 194.37 (145.00)
- Pump Size (Mm): 50 x 32 to 200 x 150
- Speed (RPM) : 1450 & 2900
- Head (Meters) : Upto 145
- Discharge (LPS): Upto 150

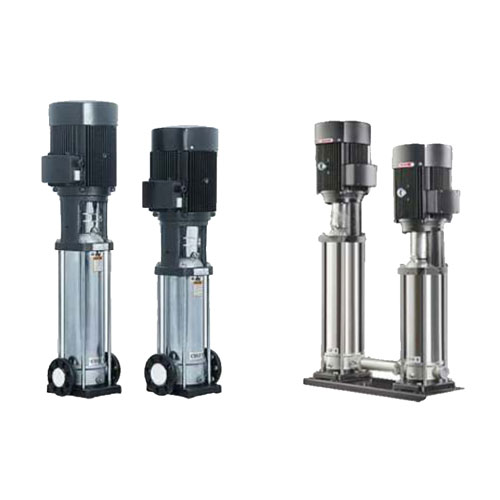

Vertical Inline Pump
- Head Range: Upto 305 Meters
- Discharge Range: Upto 240 M3/Hr
- Power Ratings: Upto 110 kW
- Voltage Range: 415 Volts – 3 Phase
- Protection: IP 55
- Motors: All motors are designed under IE2 & IE3 Specifications
- Insulation: F Class
- pH Value: 4 to 10
- Altitude: Upto 1000 meters
- Frequency: 50 HZ
- Negative Suction: Max. 3 M with foot valve
